Carter Perfect Sphere™ Tool with 16 Inch Post

Description

Includes Riser Stud for Perfect Sphere™ Tool on 16" lathes

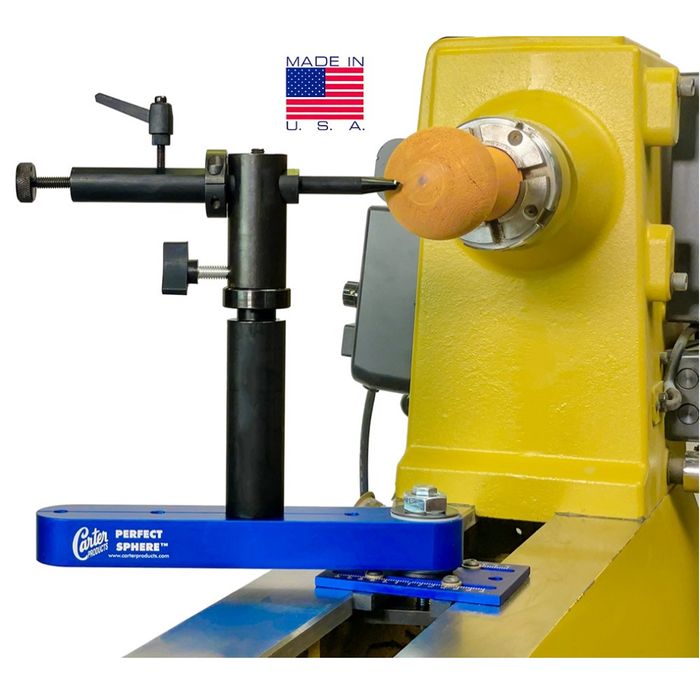

The patent pending Perfect Sphere™ Tool is a sphere and concave turning system adaptable to most lathes on the market.

Now each system comes standard with the previously optional Pro-Bar with 6mm cutter.

The heavy duty construction and flexible configuration allow you to turn spheres from 1 inch to 14 inches in diameter on most lathes from 10" to 25".

A 6mm carbide cutter provided with each system enables the tool a to cut the material versus a standard scraper which provides for a smooth cut and long lasting cutter head.

The system comes with an adjustable mounting base that accommodates most lathe bed widths.

The only part that is lathe specific is the riser post which is available to fit lathes from 10" to 24/25" and unless previously purchased, must be purchased with Perfect Sphere™ to operate.

The riser post is based on lathe swing height (lathe size) and has nothing to do with the diameter of the sphere you want to turn.

Due to the mounting height the largest diameter sphere you will be able to turn is your lathe swing height minus 4".

Wood Lathe / chuck not included.
